$540-3061 /set
| Zahlungsart: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDP,DDU,Express Delivery,DAF,DES |
| Minimum der Bestellmenge: | 1 set |
| Transport: | Ocean,Land,Air,Express |
| Hafen: | Qing Dao,Shang Hai, Yi Wu |
Schatten:
Marke: Kraft x
Garantiezeit: 3 Jahre, 5 JAHRE
Anwendung: Spielzeuge, Elektrowerkzeuge, elektrische Fahrzeuge, Elektrische Folklifte, Haushaltsgeräte, Elektrorollstühle, Unterhaltungselektronik, Elektrische Energiesysteme, BOOTE, Solarenergiespeichersysteme, Golfwagen, U-Boote, Elektrofahrräder / Roller, Unterbrechungsfreie Stromversorgungen
Batteriespezifikationen: 18650, 26500
Zertifizierung: ce
Herkunftsort: China
Place Of Origin: Jiangsu, China
Brand Name: Power-X
Model Number: POX
Battery Type: Lithium Ion, LiFePO4, Lifepo4

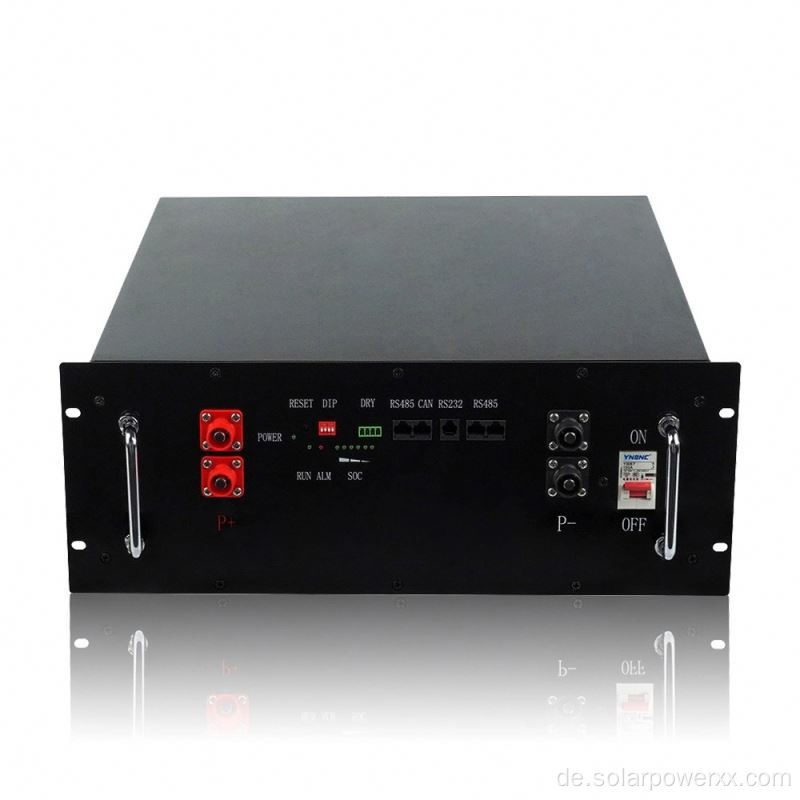

Product Name: Lithium Ion Batteries
Anwendung: Solar Energy Storage Systems
Capacity: 50ah
Voltage: 12.8V
| Verkaufseinheiten | : | set |
The file is encrypted. Please fill in the following information to continue accessing it
|
Model
|
POX-RW-2.5KWH
|
POX-RW-5.0KWH
|
POX-RW-6.6KWH
|
POX-RW-10KWH
|
|||
|
Rated Voltage
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
|||
|
Rated Capacity
|
50Ah
|
100Ah
|
130Ah
|
200Ah
|
|||
|
Energy
|
2560WH
|
5120WH
|
6656WH
|
10240WH
|
|||
|
Battery Type
|
LiFePO4 Battery
|
|
|
|
|||
|
Internal Resistance
|
≤10mΩ
|
|
|
|
|||
|
Cycle Life
|
>4000 cycles@1C 100% DOD
|
|
|
|
|||
|
Months Self Discharge
|
<3%
|
|
|
|
|||
|
Efficiency of Charge
|
100%
|
|
|
|
|||
|
Efficiency of Discharge
|
96-99% @1C
|
|
|
|
|||
|
Charge Cut-off Voltage
|
58.4V±0.2V
|
|
|
|
|||
|
Charge Mode
|
0.2C to 58.4V, then CV charge current to 0.05C(CC/CV)
|
|
|
|
|||
|
Max Continuous Charge Current
|
50A
|
100A
|
100A
|
120A
|
|||
|
Max. Continuous Discharge Current
|
50A
|
100A
|
100A
|
120A
|
|||
|
Max. Pulse Current
|
60A(3-5S)
|
120A(3-5S)
|
120A(3-5S)
|
130A(3-5S)
|
|||
|
Discharge Cut-off Voltage
|
40V
|
|
|
|
|||
|
Charge Temperature
|
0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity
|
|
|
|
|||
|
Discharge Temperature
|
-20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity
|
|
|
|
|||
|
Storage Temperature
|
0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity
|
|
|
|
|||
|
Communication
|
CAN/RS485/RA232
|
|
|
|
|||
|
Package
|
Metal Case
|
|
|
|
|||
|
Dimensions(in./mm.)
|
482*400*133mm
|
482*495*177mm
|
482*560*177mm
|
482*560*267mm
|
|||
|
Weight(lbs./kg.)
|
25kg
|
46kg
|
58kg
|
85kg
|
|||
|
Display screen
|
Optional
|
|
|
|
|||
|
Bluetooth
|
Optional
|
|
|
|
|||
|
Series/Parallel
|
Max 16 PCS in Parallel Connection
|
|
|
|
|||
|
Certification
|
CE, MSDS, UN38.3... ...
|
|
|
|
|||
|
Warranty
|
Standard 3 years, 5+ years upon request
|
|
|
|
|||
|
OEM
|
Support for customized voltage, capacity, dimension, current, logo and so on.
|
|
|
|
|||
